氧化鋁微徑色譜柱
氧化鋁微徑色譜柱 詳細信息：

微填充柱分為內徑1mm、外徑1/16英寸和內徑0.75mm、外徑0.95mm兩種，前者可接于填充柱進樣系統，后者于0.53 mm熔融石英毛細管柱的進樣系統。

名稱：三氧化二鋁微徑柱

型號：AL2O3

規格：0.7m*1/16，100-120mesh

高使用溫度：240°C

編號：20221202003

浩瀚色譜（山東）應用技術開發有限公司研發聚合級乙烯和丙烯中烴雜質的分析方法。該方法以一根/Al_2O_3含芯填充微徑色譜柱為分析柱,FTD檢測,一次進樣,外標峰高或峰面積定量,實現上述樣品中C_1～C_4烴雜質的全組成分析。方法的檢測限少可達0.5～5ppm(ml/m~3),測定結果的相對標準偏差<10%。

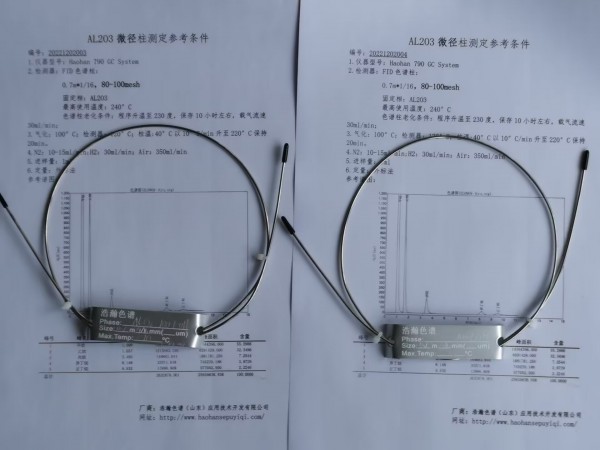

氧化鋁微徑色譜柱 測試譜圖：




Alumina micro diameter chromatographic column

Details of alumina micro diameter chromatographic column:



The micro packed column is divided into two types: inner diameter 1mm, outer diameter 1/16 inch and inner diameter 0.75 mm, outer diameter 0.95 mm. The former can be connected to the packed column injection system, while the latter is connected to the injection system of 0.53 mm fused silica capillary column.





Name: Al2O3 micro diameter column



Model: AL2O3



Specification: 0.7m * 1/16100-120mesh



Maximum operating temperature: 240 ° C



No.: 20221202003





Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. has developed analytical methods for hydrocarbon impurities in polymer grade ethylene and propylene. This method uses one/Al_ 2O_ 3. The core packed micro diameter chromatographic column is an analytical column, FTD detection, one-time sample injection, external standard peak height or peak area quantification, to achieve C in the above samples_ 1～C_ 4 Total composition analysis of hydrocarbon impurities. The detection limit of the method is at least 0.5 ～ 5ppm (ml/m3), and the relative standard deviation of the results is less than 10%.

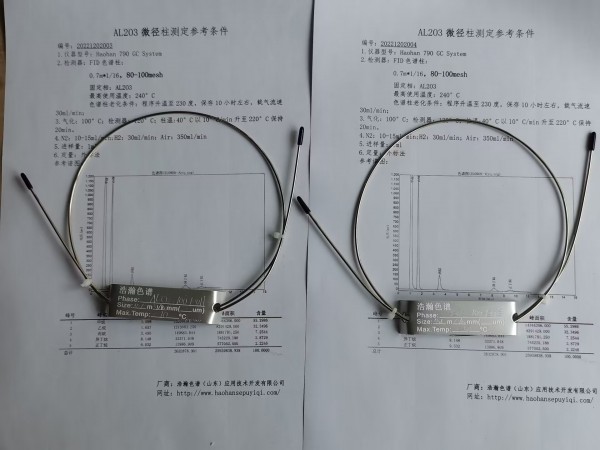

Test spectrogram of alumina micro diameter chromatographic column:
