不銹鋼卡套接頭原理及應用：

卡 套接頭的工作原理是將鋼管插入卡套內，利用卡套螺母鎖緊，抵觸卡套，切入管子而密封。它與鋼管連接時不需焊接，有利于防火、防爆和高空作業，并能消除焊接 不慎帶來的弊端。因而它是煉油、化工、石油、天然氣、食品、制藥、儀器儀表等系統自控裝置管路中的一種較為先進的連接件。適用于油、氣、水等管路連接。

公稱壓力：25MPa--40MPa
適用溫度：≤450℃
適用介質：油、水、氣等非腐蝕性或有腐蝕性介質
制造材料：201 304 316 20#
配管：Φ3～Φ42的普通級精度無縫鋼管

不銹鋼卡套 圖片：


Stainless steel ferrule
Stainless steel ferrule Details:

304 stainless steel card sleeve joint double card sleeve pipe joint
Specifications: 3mm, 6mm
Principle and application of stainless steel ferrule joint:

The working principle of the ferrule joint is to insert the steel pipe into the ferrule, use the ferrule nut to lock it, against the ferrule, cut into the tube and seal. It does not need to be welded when it is connected to the steel pipe, which is beneficial to fire prevention, explosion prevention and high-altitude operations, and can eliminate the disadvantages caused by inadvertent welding. Therefore, it is a relatively advanced connector in the pipelines of automatic control devices in oil refining, chemical, petroleum, natural gas, food, pharmaceutical, instrumentation and other systems. Suitable for pipeline connection of oil, gas and water.

Nominal pressure: 25MPa--40MPa
Applicable temperature: ≤450℃
Applicable medium: oil, water, gas and other non-corrosive or corrosive media
Manufacturing material: 201 304 316 20#
Piping: Φ3～Φ42 ordinary precision seamless steel pipe

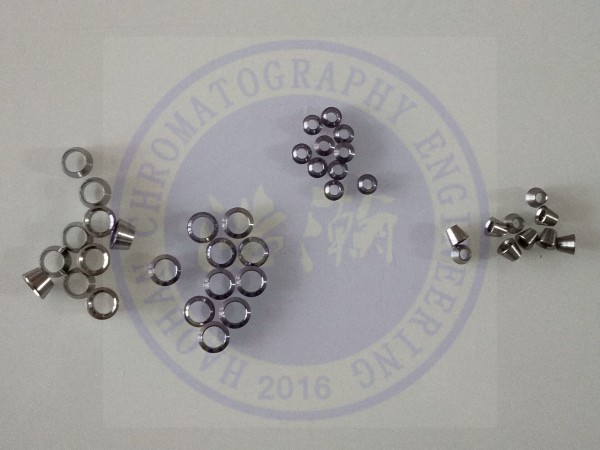

Stainless steel ferrule Picture:
